Shielding Box

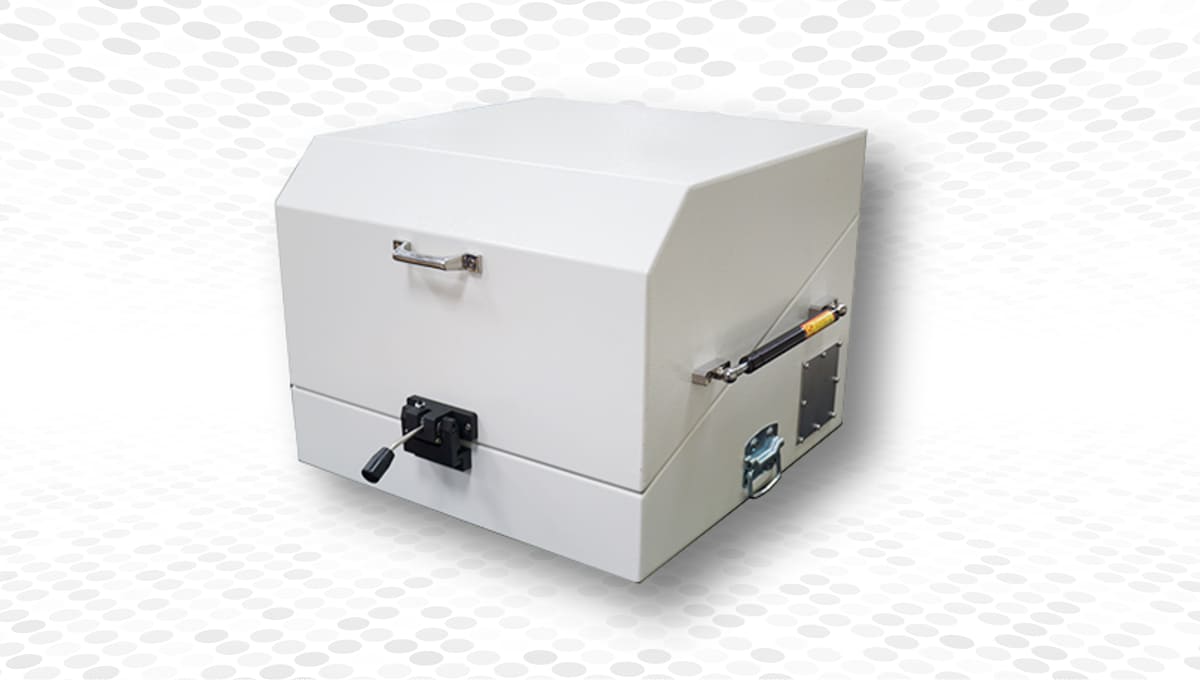

RF Shielding Box
Product Features
- Shielding effect can reach ≥90dB
- Cabinet equipped with filters of high isolation capability
- 無線電磁波訊號隔離箱
- 適用頻段之隔離度可達 ≥90dB
- 箱體同時配置高隔離度濾波器
Application
- Working frequency is between 700MHz to 7GHz
- 隔離箱適用於無線通訊產品測試頻段介於 700 MHz 到 7 GHz
Specification
| 產品技術規格 | |
|---|---|
| Exterior Dimension 外尺寸 | By product model 依產品型號 |
| Interior Dimension 內尺寸* | By product model 依產品型號 |
| Working Frequency 工作頻率 | 0.7 GHz ~ 7 GHz |
| Shielding Effect 隔離效果 | ≥90dB @2.4 GHz ≥90dB @5.8 GHz |
| Material 材質 | By product model 依產品型號 |
| Open Mod 開啟方式 | Manual flip opening、Manual side opening 手動上掀、手動側開 Pneumatic side opening、Pneumatic flip opening 氣動天井、氣動上掀 |
| Max. Quantity of Filters 最大濾波器擴充數 | By product model 依產品型號 |
| Filter Interface Type 濾波器介面 | VGA、RS232、RJ45 USB2.0、USB3.0、SMA HDMI、DC、AC etc. |
| Working Temperature 工作溫度 | Normal Temperature 常溫 |
| Weight 重量 | By product model 依產品型號 |
| Color of Appearance 顏色 | Ivory 象牙白 |
