Ceramic Writing Pen / Nozzles Tip

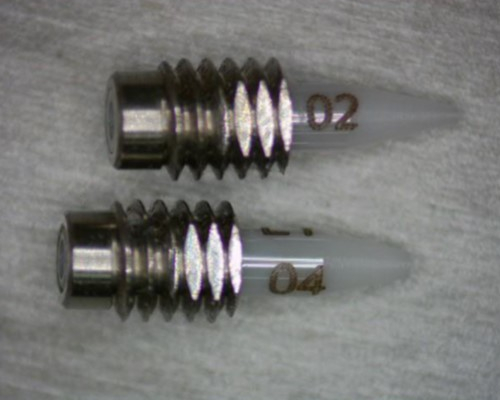

Ceramic Writing Pen / Nozzles Tip 19L & 7L

Description

  • Ceramic Writing Pen/Nozzles Tip
  • 陶瓷點膠針
  • 陶瓷畫膠針

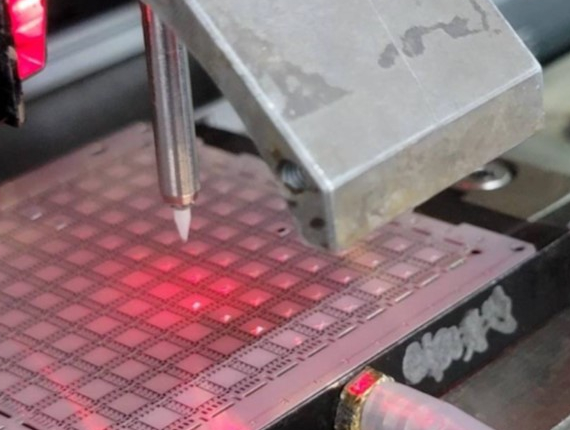

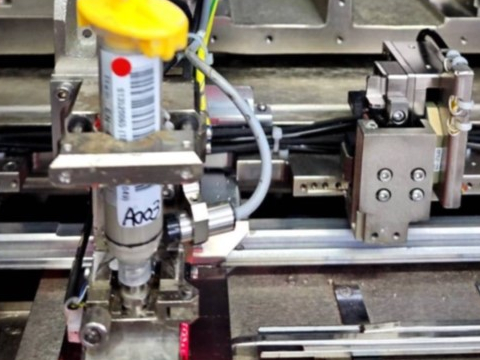

We manufacture a series of ceramics writing pens used on the die-attach machine in assy house.
Our most popular pen is the low-cost 19L & 7L, and it has been mass-produced in Y2020.
It replaces the original tungsten carbide tip with our standard nozzle tubing.

Tip Size & Hold

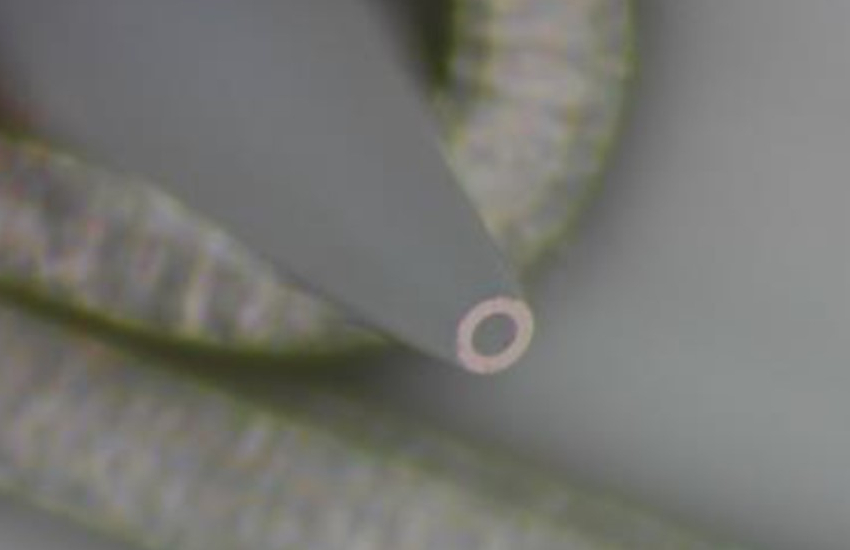

∅d: 0.1mm (100µm)

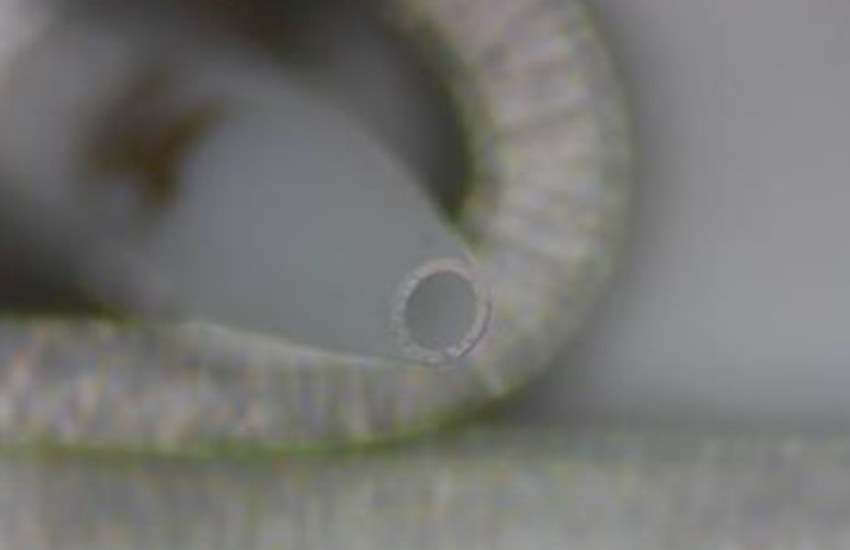

∅d: 0.3mm (300µm)
(∅d): 0.2-0.6
Engineers have completed testing procedures for 0.2-0.6 Writing Pen / Nozzles Tip.

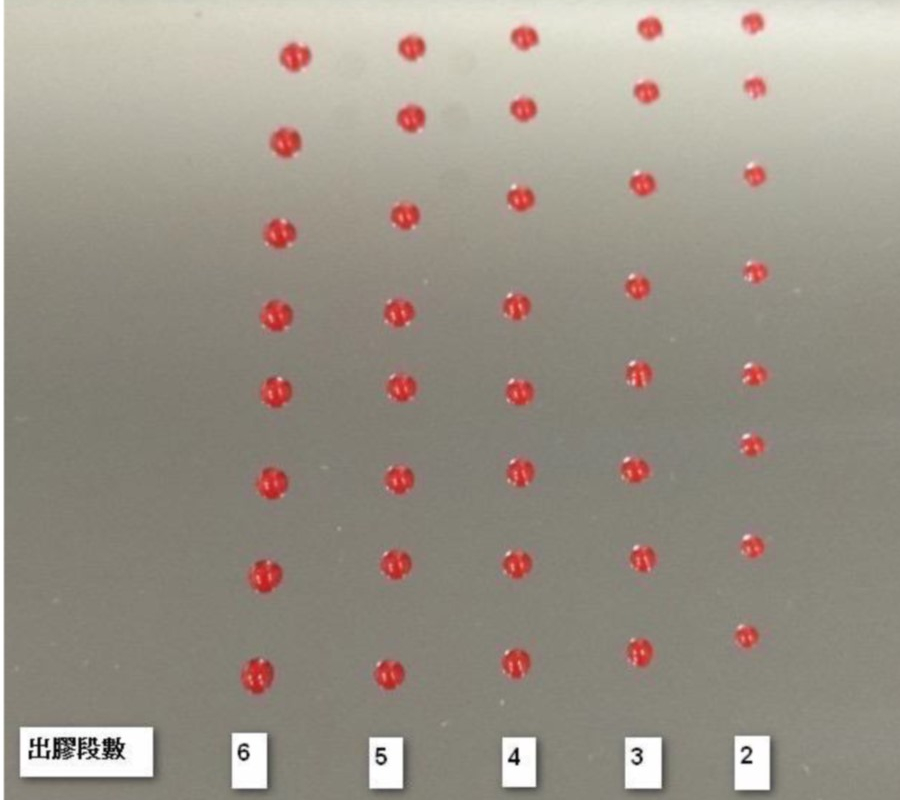

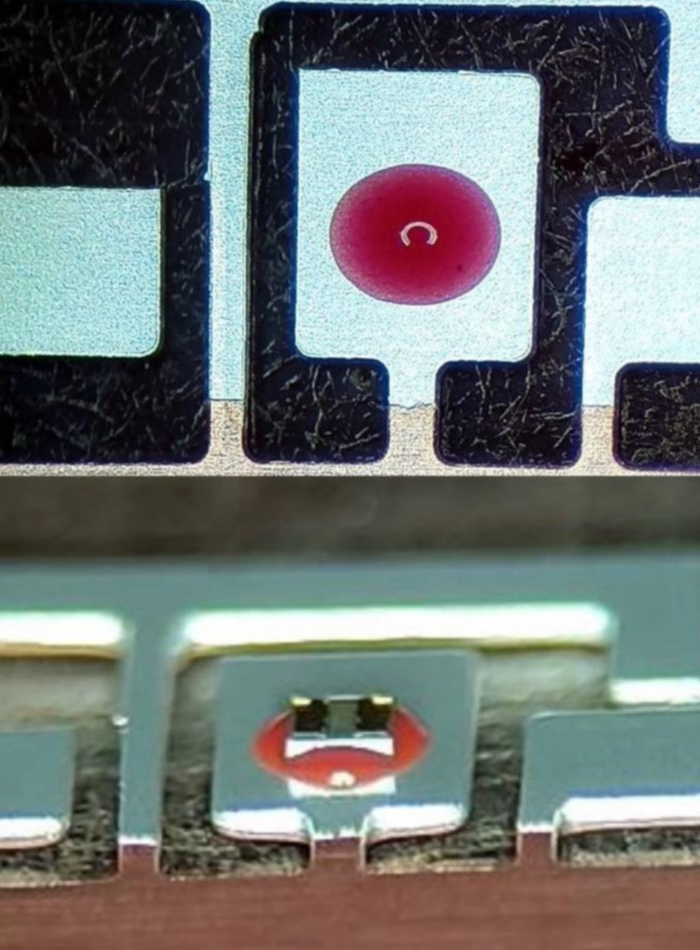

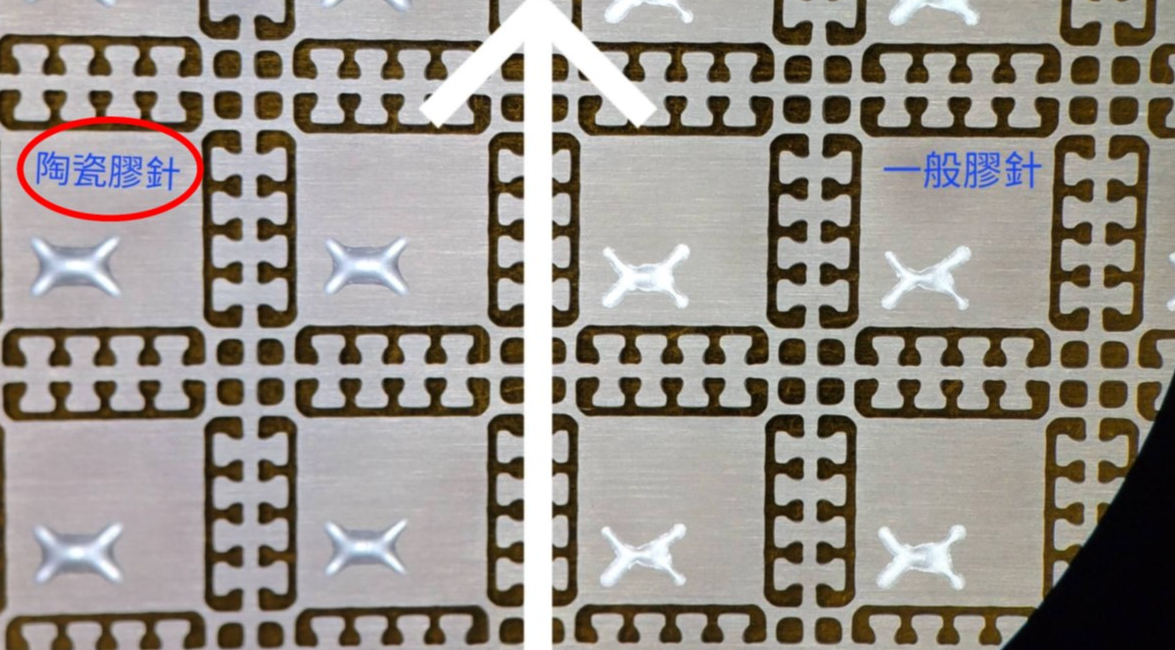

Test Results

(∅d): 0.2
has been mass-produced in RF device for a longtime.
  • When changing new paste
  • When continuous dispensing over 72 hours
  • When die bonder none operate over 16 hours
  • When ceramic pin being hit or crack
  • When different diameters required for different assy packages / process
